DMX Smart Link HUB - Network Edition
DMX Smart Link HUB - Network Edition
DMX control, AI show tools and compatible smart lights in one system.
For stages, theaters, gyms, churches, venues and smart homes.
-
Save and recall complete lighting scenes
-
Visual fixture control and multiple universes
-
Art-Net input/output and sACN input
-
Compatible smart lights via Homebridge or Home Assistant
-
Browser and iPhone control; supported Stream Deck and MIDI workflows
Not sure yet? Try the software free for 14 days, no credit card.
Lighting control for stages, spaces and everyday life
Bring DMX fixtures and compatible smart lights into one control system. Build lighting scenes, use Visual Control, and explore AI music-reactive shows for concerts, theaters, gyms, churches, DJs, hospitality and smart homes.
Planning a large theater or professional concert rig? Review fixture compatibility, universes, cue requirements and timing with us, then validate the complete workflow. Explore capabilities and find your starting point.
Homebridge and Home Assistant
Connect compatible smart lights through Homebridge or Home Assistant alongside your DMX fixtures. The experimental Home Assistant companion on Pi / Ubuntu supports compatible Govee LAN and Matter lights. On/off, brightness, RGB and color-temperature controls depend on the device and integration. Validate your exact devices during the trial.
New: control your lights from anywhere
Your DMX Smart Link HUB is your lighting console, and now it goes wherever you go. With built-in cloud access, the DMX Smart Link app runs your whole setup from anywhere in the world over the internet: recall scenes, start light shows, and control your DMX fixtures and your smart lights, all from one place. Set the room from home before a service, or adjust it from the back of the venue. Homebridge and Home Assistant open from the app too, and Visual Control shows your lights live while you are away.
- Private by design: each phone has its own key, everything between the phone and the HUB is end-to-end encrypted, and the app connects straight to your HUB whenever the network allows.
- You decide who gets in: add phones as Admin or Operator with a one-time code or QR code from the HUB's Remote Access tab, and remove a phone at any time.
- Philips Hue live shows (beta): stream real-time effects to the lights in a Hue entertainment area.
Remote access comes with DMX Smart Link 2026.10.08.0435 and later with an active licence: update the HUB from its dashboard. The HUB needs an internet connection. Get the DMX Smart Link app for iPhone on the App Store; the Android app is in early access: contact us to join. Back up and test your rig before an event. Read the release notes.
Set the scene once, save it, and bring the whole rig back with one press. A scene saves the current state of your fixtures and smart lights without requiring a selection. Recall that lighting from a named button; your Visual Control stage layout stays in place. Nobody has to remember which channel does what on a Sunday morning, and nobody rebuilds the scene at the next load-in.
New (September 2026): Stream Deck and YoloDeck support.
Plug an Elgato Stream Deck or YoloLiv YoloDeck into the HUB and every saved scene becomes a key. Prefer the deck at the desk and the HUB in a rack? Plug the deck into your Mac or Windows PC, run the DMXSmartLink Stream Deck app, and it drives the HUB over the network.
Also new: supports local lighting workflows; cloud services and some integrations still need internet access, local Govee control through Home Assistant with response times that depend on the devices and network, Matter devices, a touch kiosk mode on a Pi with a screen, and OSC plus a control API for QLab, TouchOSC and Companion.
DMX fixtures and smart lights run from the same dashboard. That is why our own church stopped using LightKey — one dashboard now runs its DMX fixtures and its smart lights. Prefer the desk your team already knows? DMX Smart Link speaks Art-Net and sACN, so LightKey, QLC+ or Madrix can feed it directly. Interop is a feature here, not the whole product.
The software runs anywhere — the HUB is the version where the setup is already done. The same software installs on macOS, Windows 11, Ubuntu/Linux or a Raspberry Pi 5. This is a Pi 5 with it preinstalled, configured, and a 1-year licence included. Run it from any browser on the network, or the free iPhone app, so you can walk the room during soundcheck and fix a wash from your pocket.
16,475 fixture profiles from 1,697 manufacturers, covering 56,465 modes in release 2026.09.19.0031, ship on the card — and the library grows every release. Import your QLC+ fixtures, export to FreeStyler or Open Fixture Library, and move your licence to another machine when your hardware changes. Nothing here locks you in.

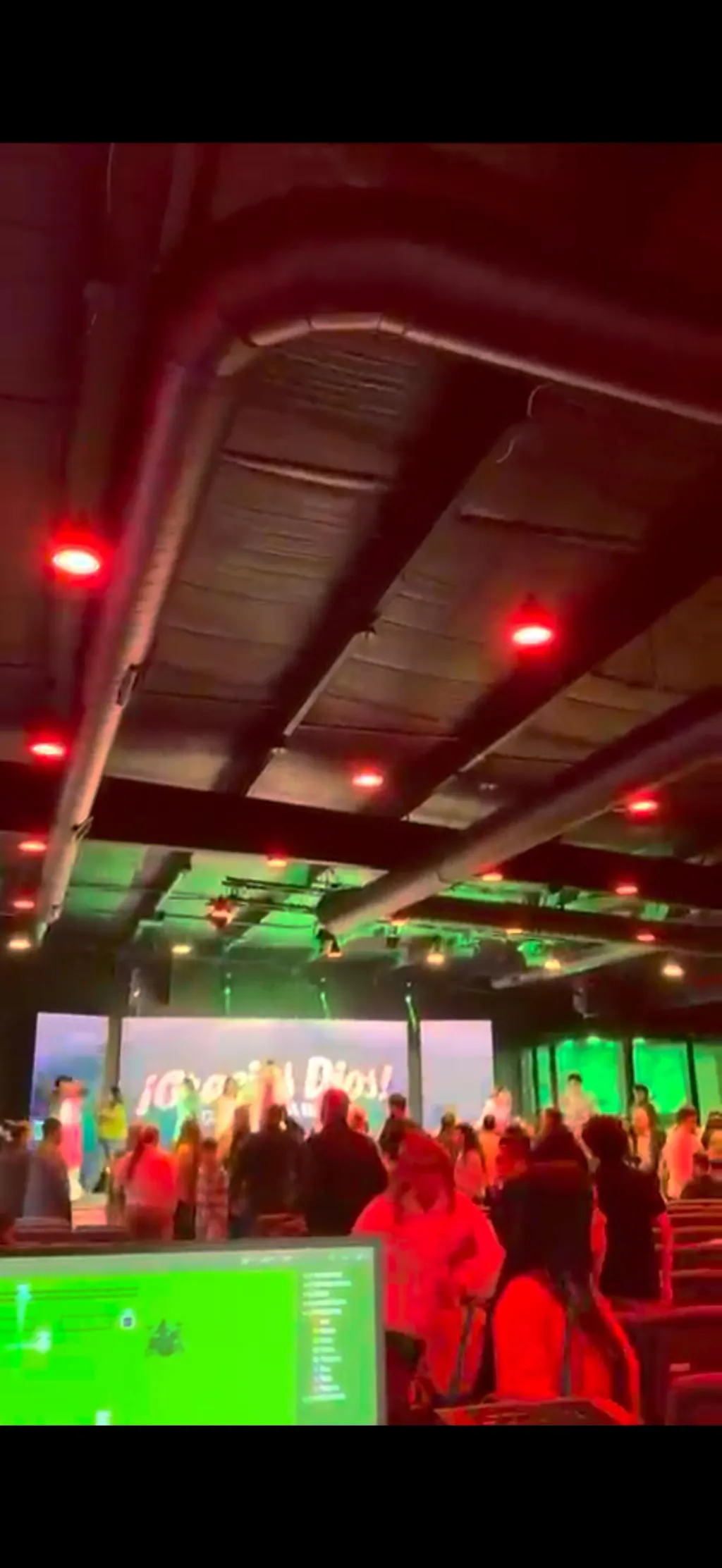

A HUB running a real install: 16 DMX fixtures patched alongside smart-light zones — Sanctuary, Foyer, Entrance and more — with scenes saved and ready to recall.
Best for network-based rigs: a full DMX console for your stage lights over Art-Net, plus Govee and other smart lights, over the network you already have. Choose this if your rig already has Art-Net nodes or a console, or you own a USB DMX interface.
| Compare the Kits | Network Edition | Output Kit (Basic) | Pro Output Kit | Pro Dual I/O Kit |
|---|---|---|---|---|
| Ready-to-run hub (software pre-installed) | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Controls Govee & other smart lights | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Network control (Art-Net / sACN) | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Physical DMX OUT (XLR) interface included | Add-on needed * | Standard | Pro-grade | Pro-grade |
| DMX interface in the box | None | 1× USB-DMX | 1× pro USB-DMX | 2× pro USB-DMX |
| DMX INPUT (feed from your console or software) | — | — | — | ✓ Yes |
| Send AND receive DMX at the same time | — | — | — | ✓ Yes |
| Software + 1-year license included | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Best for | Stage lights over Art-Net nodes, plus smart lights | A few pars or uplights. Homes and small rooms | Venues, churches and DJs. For buffered, hardware-timed output | Rooms with a lighting console feeding DMX in |
* Every edition is a full DMX console with Art-Net input and output, plus sACN input. The Network Edition drives stage lights through any Art-Net node or Art-Net-to-DMX bridge box you already have. To send DMX straight out of a cable, add a USB DMX interface (sold separately) or pick an Output Kit, which already includes one.
More ways to run your lighting
- Visual Control, whole-rig scenes and fixture groups.
- Follow Spot with saved stage positions; Stream Deck, MIDI, OSC and API control.
- Channel Check to test fixture channels and save verified settings.
- AI Light Show, Media Player, AI Slide Show and NDI video colour follow.
- Network Logs for setup and troubleshooting.
Plug it in, add your lights, save your scenes. From then on, running the room is pressing a button with a name on it.

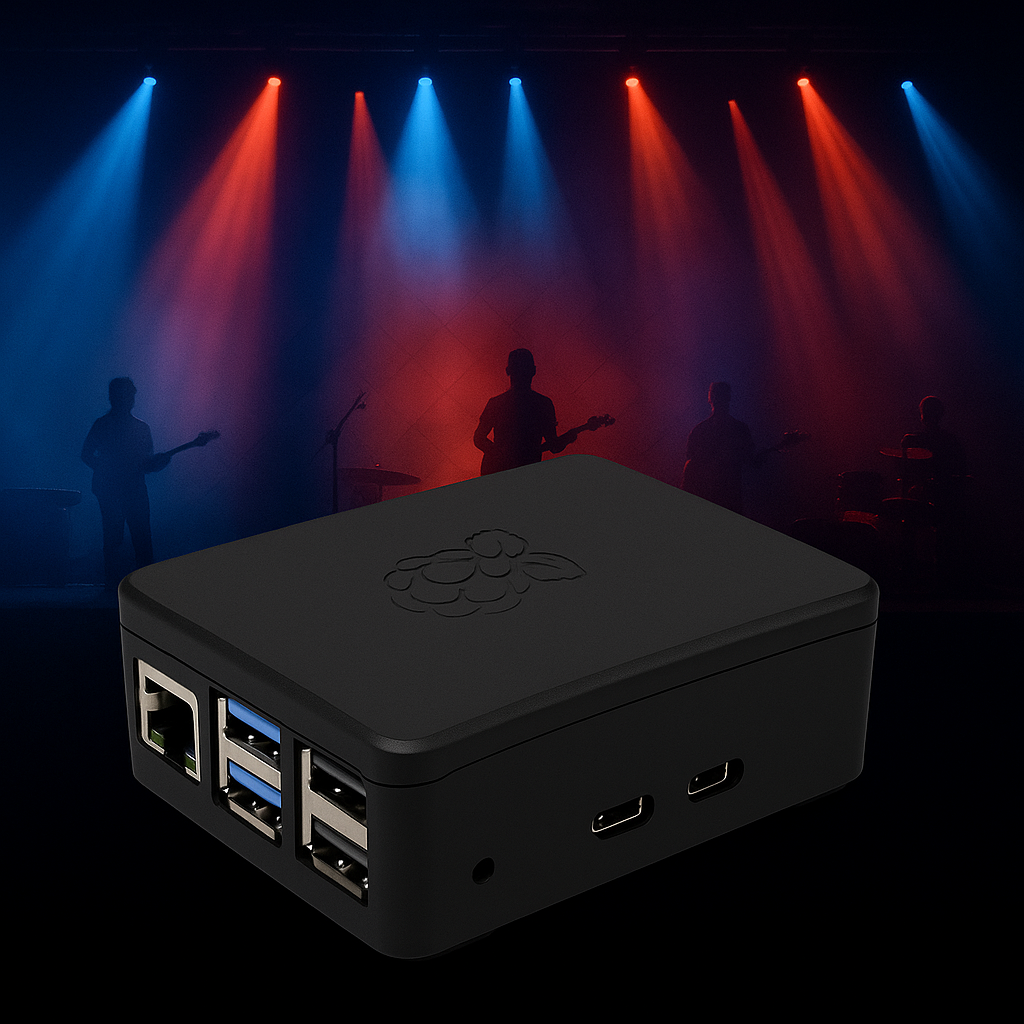

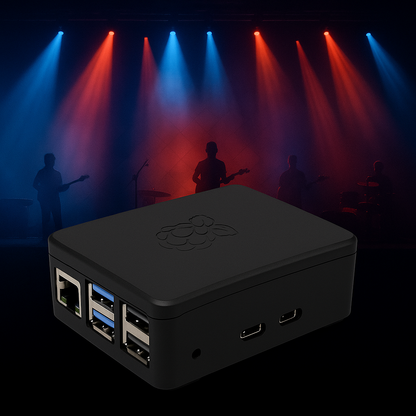

Fully configured Raspberry Pi 5 with DMX Smart Link software included.
The DMX Smart Link HUB – Network Edition is a plug-and-play appliance running professional DMX controller software — control your Govee and smart lighting directly over Art-Net and Ethernet, and also compatible with the professional DMX software you already use. It arrives configured; you add your lights and save your scenes.
👤 Who This Is For
- 🎧 DJs & mobile performers using Art-Net or network-based DMX
- 🎭 Venue techs integrating DMX software with smart lighting
- 🏠 Smart home & automation professionals
- ⛪ Churches and production teams needing reliable network DMX control
- 🧪 Advanced users who want a preconfigured, supported control hub
✨ Features
- ✅ Plug-and-play – fully configured, tested, and ready to use
- 🌐 Art-Net / sACN over Ethernet for network-based DMX control
- 💡 Direct DMX control of Govee and compatible smart-lighting platforms
- 🎛 Works with the professional Art-Net & sACN lighting software you already use
- 🧩 Visual Control Dashboard (Manual Fixture/Group Control)
Includes a powerful web-based Visual Control interface for:- Manual control of fixtures and groups
- Testing DMX universes and patching
- Verifying output and configuration during setup
- Perfect for troubleshooting and system validation before showtime.
- AI lighting workflows: explore music-reactive AI Light Show, AI Slideshow and NDI video colour follow. Inputs and available controls depend on your platform and source.
- 🔄 Supports multiple DMX universes with flexible universe mapping
- 🧠 Device detection & status monitoring
- 🗣 Alexa: switch smart-light scenes by voice (via Homebridge)
- 🔐 1-year DMX Smart Link software license included (pre-activated)
🔌 Physical DMX Support
The Network Edition HUB supports physical DMX input and output via compatible USB-DMX interfaces (sold separately), including:
• Open-DMX USB (output only)
• ENTTEC DMX USB Pro (input or output per device)
Multiple USB-DMX interfaces can be connected simultaneously for advanced routing and Art-Net routing.
📦 What’s in the Box
- 1× DMX Smart Link HUB – Network Edition
- 1× Raspberry Pi 5 (4 GB) in its case
- 1× Pre-installed microSD card with DMX Smart Link software
- 1× micro-HDMI to HDMI cable (only if you ever want a screen on it)
- 1x MicroSD to USB adapter
- 1× Power adapter
- 1× Quick Start Guide
Not included:
DMX cables, USB-DMX interfaces, or XLR adapters (sold separately).
🔑 License
- Includes 1-year DMX Smart Link software license
- License is pre-activated on the device
- Renewable or upgradeable after the first year
Any phone runs the dashboard in a browser. iPhone users can also use the free companion app.
If you get stuck, a person answers.
Email support@dmxsmartlink.com, or message us on Discord any time. The Discord is open any time, and it is where owners and the people who build DMX Smart Link answer setup questions every week. Step-by-step guides and videos are on the documentation page.
After the first year: every HUB includes 12 months of software updates and support. Renewal is an annual license. Keep your licence active to continue licensed operation; see the current licence terms before renewal.
For your AV person
DMX out through the USB interface in the kit (ENTTEC DMX USB Pro, hardware-timed, or Open DMX); the HUB itself has no XLR ports. Art-Net input and output, plus sACN input, multiple universes. Scenes store the full DMX frame per universe. Scene recall from the web dashboard, the iPhone app, a Stream Deck, OSC and a control API. Put the HUB on Ethernet with a fixed IP; keep Govee lights on a solid 2.4 GHz network. Fixture library: 16,475 profiles (release 2026.09.19.0031), QLC+ import, Open Fixture Library and FreeStyler export. Questions before you spec it: support@dmxsmartlink.com or Discord.
Do I need an interface?
Wired DMX needs a supported USB-DMX interface or network node. The software licence and Network Edition do not include a USB-DMX interface; check each kit’s contents.
Can I use my existing console?
Compatible Art-Net and sACN input workflows let you connect your existing equipment. Validate patching and your required features during the trial.
What is in beta?
Named AI show setups and the Mac/Windows MIDI-over-IP connector are available in beta2326. Saved AI show setups do not yet appear as named Elgato buttons. Explore capabilities and beta details.
We ship within the United States and your order confirmation includes tracking. Details are in our Shipping Policy and Return Policy. Not sure which kit fits your lights? Email support@dmxsmartlink.com a photo before you order and we will tell you.
