DMX Smart Link HUB - Pro Output Kit (ENTTEC DMX USB Pro)
DMX Smart Link HUB - Pro Output Kit (ENTTEC DMX USB Pro)
DMX control, AI show tools and compatible smart lights in one system.
For stages, theaters, gyms, churches, venues and smart homes.
-
Save and recall complete lighting scenes
-
Visual fixture control and multiple universes
-
Art-Net input/output and sACN input
-
Compatible smart lights via Homebridge or Home Assistant
-
Browser and iPhone control; supported Stream Deck and MIDI workflows
Not sure yet? Try the software free for 14 days, no credit card.
Lighting control for stages, spaces and everyday life
Bring DMX fixtures and compatible smart lights into one control system. Build lighting scenes, use Visual Control, and explore AI music-reactive shows for concerts, theaters, gyms, churches, DJs, hospitality and smart homes.
Planning a large theater or professional concert rig? Review fixture compatibility, universes, cue requirements and timing with us, then validate the complete workflow. Explore capabilities and find your starting point.
Homebridge and Home Assistant
Connect compatible smart lights through Homebridge or Home Assistant alongside your DMX fixtures. The experimental Home Assistant companion on Pi / Ubuntu supports compatible Govee LAN and Matter lights. On/off, brightness, RGB and color-temperature controls depend on the device and integration. Validate your exact devices during the trial.
New: control your lights from anywhere
Your DMX Smart Link HUB is your lighting console, and now it goes wherever you go. With built-in cloud access, the DMX Smart Link app runs your whole setup from anywhere in the world over the internet: recall scenes, start light shows, and control your DMX fixtures and your smart lights, all from one place. Set the room from home before a service, or adjust it from the back of the venue. Homebridge and Home Assistant open from the app too, and Visual Control shows your lights live while you are away.
- Private by design: each phone has its own key, everything between the phone and the HUB is end-to-end encrypted, and the app connects straight to your HUB whenever the network allows.
- You decide who gets in: add phones as Admin or Operator with a one-time code or QR code from the HUB's Remote Access tab, and remove a phone at any time.
- Philips Hue live shows (beta): stream real-time effects to the lights in a Hue entertainment area.
Remote access comes with DMX Smart Link 2026.10.08.0435 and later with an active licence: update the HUB from its dashboard. The HUB needs an internet connection. Get the DMX Smart Link app for iPhone on the App Store; the Android app is in early access: contact us to join. Back up and test your rig before an event. Read the release notes.
Best for venues and permanent installs that need hardware-timed DMX output: includes a pro-grade, buffered and hardware-timed USB-DMX interface for buffered control of compatible fixtures. DMX output only.
New (September 2026): Stream Deck and YoloDeck support.
Plug an Elgato Stream Deck or YoloLiv YoloDeck into the HUB and every saved scene becomes a key. Prefer the deck at the desk and the HUB in a rack? Plug the deck into your Mac or Windows PC, run the DMXSmartLink Stream Deck app, and it drives the HUB over the network.
Also new: supports local lighting workflows; cloud services and some integrations still need internet access, local Govee control through Home Assistant with response times that depend on the devices and network, Matter devices, a touch kiosk mode on a Pi with a screen, and OSC plus a control API for QLab, TouchOSC and Companion.
| Compare the Kits | Network Edition | Output Kit (Basic) | Pro Output Kit | Pro Dual I/O Kit |
|---|---|---|---|---|
| Ready-to-run hub (software pre-installed) | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Controls Govee & other smart lights | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Network control (Art-Net / sACN) | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Physical DMX OUT (XLR) interface included | Add-on needed * | Standard | Pro-grade | Pro-grade |
| DMX interface in the box | None | 1× USB-DMX | 1× pro USB-DMX | 2× pro USB-DMX |
| DMX INPUT (feed from your console or software) | — | — | — | ✓ Yes |
| Send AND receive DMX at the same time | — | — | — | ✓ Yes |
| Software + 1-year license included | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Best for | Stage lights over Art-Net or sACN nodes, plus smart lights | A few pars or uplights. Homes and small rooms | Venues, churches and DJs. For buffered, hardware-timed output | Rooms with a lighting console feeding DMX in |
* Every edition is a full DMX console with Art-Net input/output and sACN input. The Network Edition drives stage lights through any Art-Net node or Art-Net-to-DMX bridge box you already have. To send DMX straight out of a cable, add a USB DMX interface (sold separately) or pick an Output Kit, which already includes one.

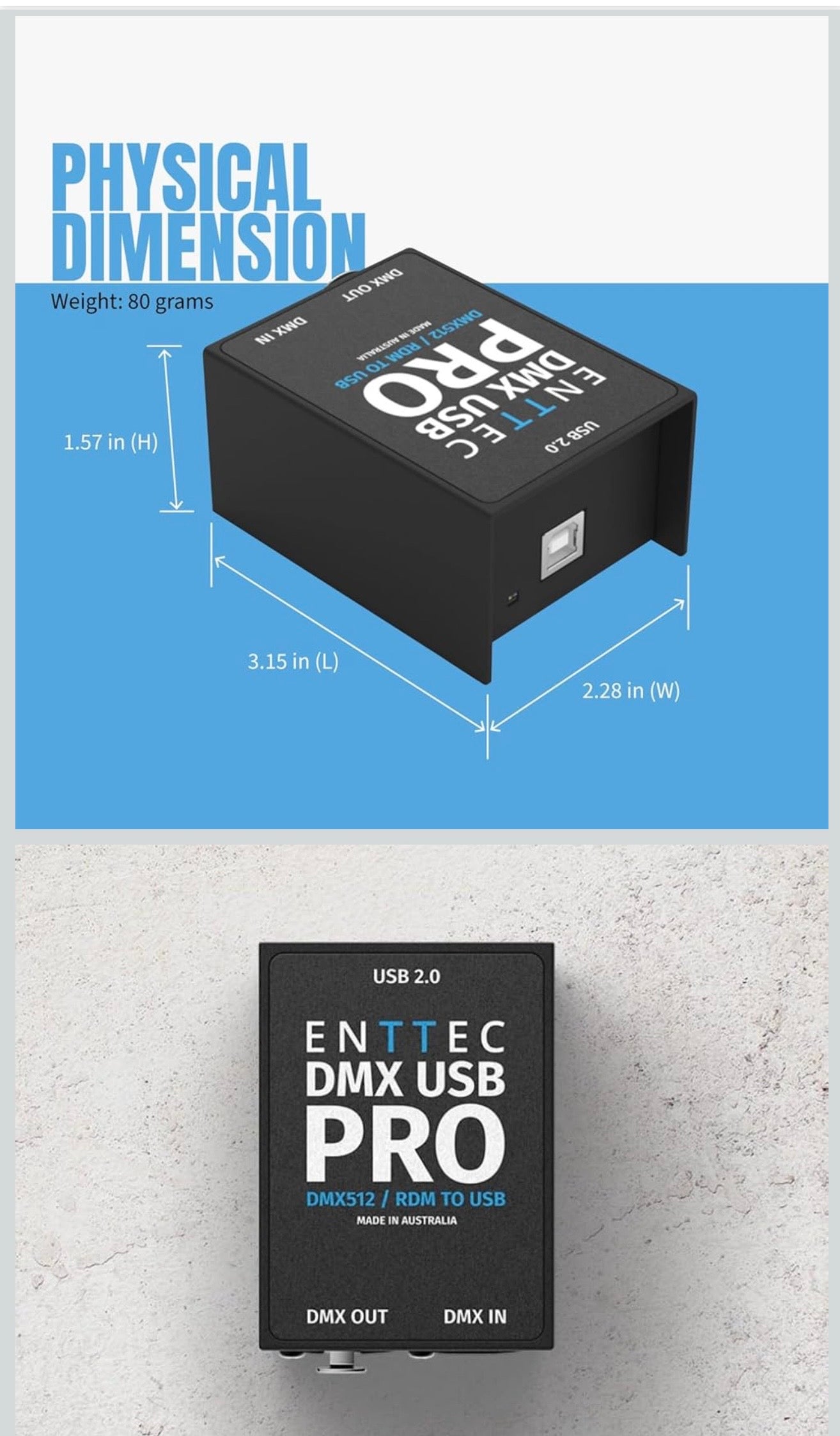

Pro-grade DMX output, ready the moment you plug in. Built around the trusted ENTTEC DMX USB Pro, this kit drives your professional DMX fixtures and your smart lights together — the interface is already recognized, and nothing locks you in.
Professional-grade DMX output with rock-solid timing and reliability.
The DMX Smart Link HUB – Pro Output Kit pairs the Smart Link platform with the ENTTEC DMX USB Pro for dependable, low-latency DMX output. Ideal for venues, churches, and production environments where stability matters.
⚠️ Important Note
This kit provides DMX OUTPUT only using the ENTTEC DMX USB Pro.
The ENTTEC DMX USB Pro supports input or output per device, but not both simultaneously.
👉 For simultaneous DMX input + output, see the Pro Dual I/O Kit.
🔑 What’s Included
- 1× DMX Smart Link HUB (Raspberry Pi 5, fully configured)
- 1× micro-HDMI to HDMI cable (only if you ever want a screen on it)
- 1× ENTTEC DMX USB Pro
- 1× DMX Pro XLR pigtail (required for output)
- 1× Pre-installed microSD card
- 1× Power adapter
- 1× Quick Start Guide
- 🔐 DMX Smart Link Software (1-Year License)
👤 Who This Is For
- 🎭 Professional venues and theaters
- ⛪ Churches and production teams
- 🎧 DJs who require stable, clocked DMX output
- 🎚 Lighting programmers using Art-Net with physical fixtures
- 🏗 Permanent or semi-permanent installations
✨ Key Features & Benefits
-
🎛 ENTTEC DMX USB Pro Output
Industry-standard DMX interface with buffered, clocked output for maximum stability. - 🧩 Visual Control Dashboard (Manual Fixture/Group Control)
Includes a powerful web-based Visual Control interface for:- Manual control of fixtures and groups
- Testing DMX universes and patching
- Verifying output and configuration during setup
- Perfect for troubleshooting and system validation before showtime.
- AI lighting workflows: explore music-reactive AI Light Show, AI Slideshow and NDI video colour follow. Inputs and available controls depend on your platform and source.
-
🌐 Art-Net to Physical DMX
Route Art-Net from the lighting software you already use directly to fixtures. -
🎨 Unified Smart + DMX Control
Combine smart lighting (Govee) and physical DMX fixtures into synchronized scenes. -
🧠 Automatic Hardware Detection
ENTTEC device is detected, configured, and assigned automatically. -
📊 Built-In Web Dashboard
Browser-based control and monitoring at
from any browser on your network -
🎙 Alexa Integration
Switch smart-light scenes by voice (via Homebridge). -
🌌 Multi-Universe Support
Flexible universe mapping for complex rigs.
🔌 Physical DMX Details
- Interface: ENTTEC DMX USB Pro
- XLR Connection: Via included pigtail
- Universes: Configurable via Art-Net
🔐 License Information
- Includes 1-year DMX Smart Link software license
- License is pre-activated on the hub
🧭 Upgrade Path
Need to capture DMX input while outputting DMX at the same time?
👉 Upgrade to the DMX Smart Link HUB – Pro Dual I/O Kit.
📱 Companion App
Any phone runs the dashboard in a browser. iPhone users can also use the free companion app.
Manage your DMX Smart Link HUB from your phone — view device status, manage settings, and control key features through the companion app.
If you get stuck, a person answers.
Email support@dmxsmartlink.com, or message us on Discord any time. The Discord is open any time, and it is where owners and the people who build DMX Smart Link answer setup questions every week. Step-by-step guides and videos are on the documentation page.
After the first year: every HUB includes 12 months of software updates and support. Renewal is an annual license. Keep your licence active to continue licensed operation; see the current licence terms before renewal.
For your AV person
DMX out through the USB interface in the kit (ENTTEC DMX USB Pro, hardware-timed, or Open DMX); the HUB itself has no XLR ports. Art-Net input/output and sACN input, multiple universes. Scenes store the full DMX frame per universe. Scene recall from the web dashboard, the iPhone app, a Stream Deck, OSC and a control API. Put the HUB on Ethernet with a fixed IP; keep Govee lights on a solid 2.4 GHz network. Fixture library: a growing fixture-profile library, QLC+ import, Open Fixture Library and FreeStyler export. Questions before you spec it: support@dmxsmartlink.com or Discord.
See the current interface
Visual Control in release 2026.09.19.0031, with saved scenes and a real lighting layout. Example fixtures shown are not included.
Do I need an interface?
Wired DMX needs a supported USB-DMX interface or network node. The software licence and Network Edition do not include a USB-DMX interface; check each kit’s contents.
Can I use my existing console?
Compatible Art-Net and sACN input workflows let you connect your existing equipment. Validate patching and your required features during the trial.
What is in beta?
Named AI show setups and the Mac/Windows MIDI-over-IP connector are available in beta2326. Saved AI show setups do not yet appear as named Elgato buttons. Explore capabilities and beta details.
We ship within the United States and your order confirmation includes tracking. Details are in our Shipping Policy and Return Policy. Not sure which kit fits your lights? Email support@dmxsmartlink.com a photo before you order and we will tell you.
