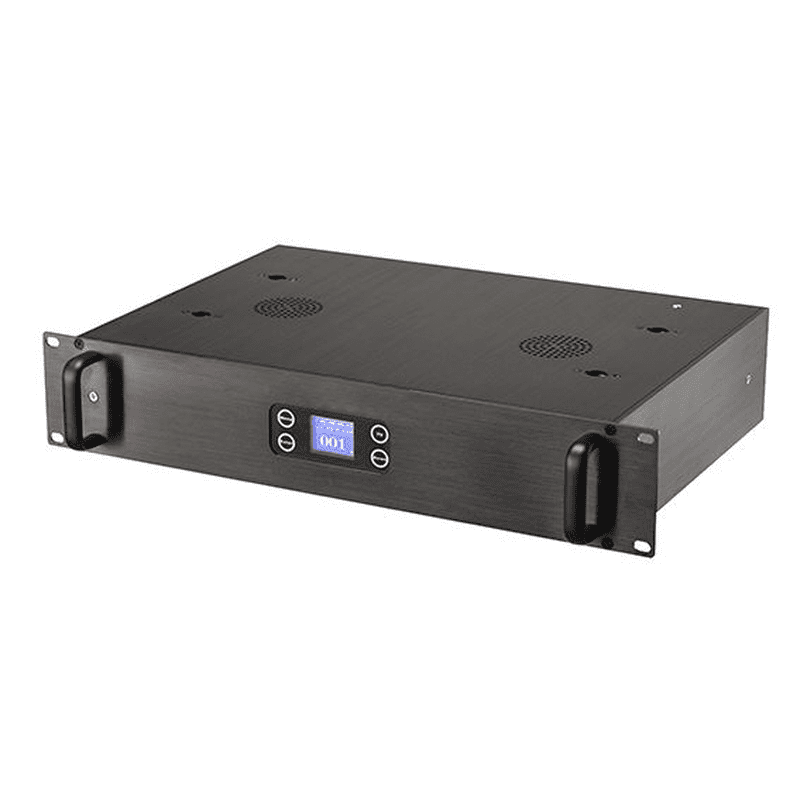

Gamma IP Pixel Driver

Gamma IP Pixel Driver

$1,284.00
$1,284.00
SAVE % Sold out
1

The Gamma pixel strip driver has 4 output ports, each allowing up to 8 strips per port with a maximum cable length of 200 feet. Full pixel control is achieved over Art-Net, or alternatively, standard DMX can be used with built-in macros.

From the Manufacturer:

Our LED Pixel Strip IP is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 80 tri-colored SMD 5050 LEDs, has a pixel pitch of 12.5 millimeters, and a 120-degree viewing angle. With multiple control options―industry standard Art-Net and DMX ―pixel mapping displays are achieved in minutes. Runs both signal and power over 5 pin cables with locking connectors that provide greater stability and connection in a daisy chain. IP-65 outdoor rated features also makes this a reliable setup for any type of setting no matter if its indoors or outdoors.


In the Box:

  • (1) Pixel Strip Driver

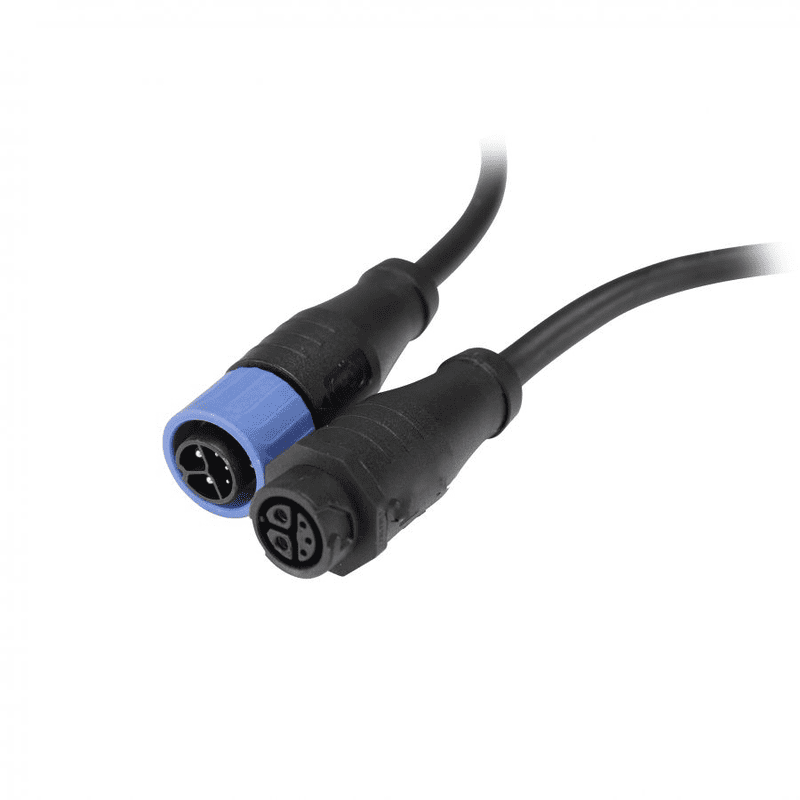

  • (1) Locking Power Cable



Features:

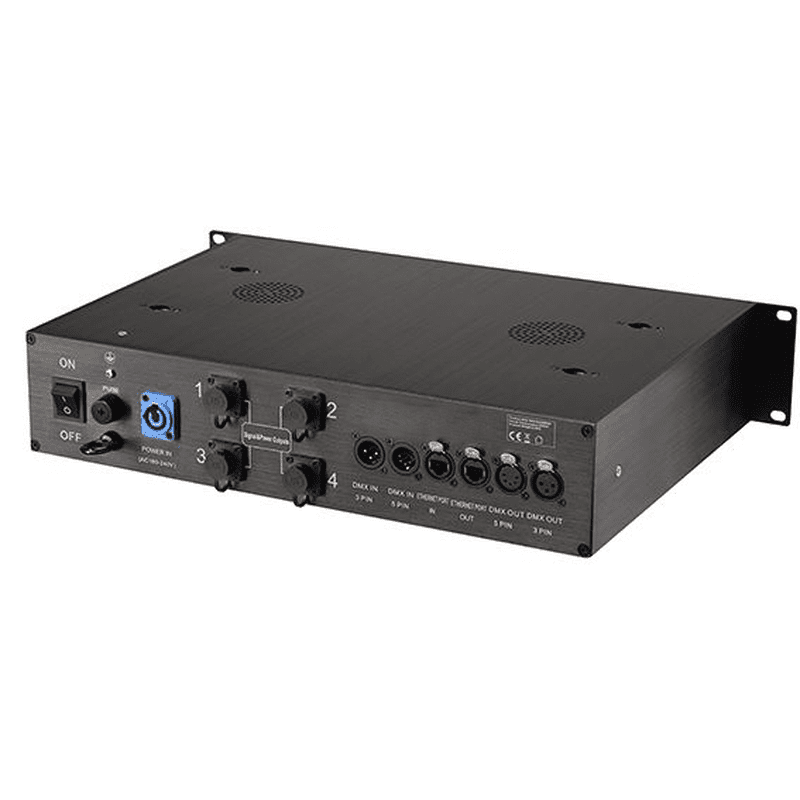

  • Outputs: 4x 5 Pin pixel outputs
  • Max strips per output: 8
  • Input: Ethernet in and through, DMX in and through (5 & 3)
  • Control Protocol: DMX, Art-Net
  • Operating Modes: 1LED / 2LED / 3LED / 4LED = 1 Pixel
  • IP Grade: IP65
